.277 SIG Fury Demystified
SIG’s new cartridge, the .277 SIG Fury, has just about broken the internet with all kinds of wild speculation. Here’re some of the facts. (Photo: Levi Sim)

Earlier this week, SIG introduced their new Cross rifle to much acclaim. They mentioned that it’s chambered for .308 Winchester, 6.5 Creedmoor, and .277 SIG Fury.

Well, the speculation about this mysterious .277 SIG Fury has practically broken the internet. GunsAmerica spoke directly with an authoritative representative from SIG to get the scoop and figure out exactly what’s going on with this cartridge.

.277 SIG Fury Demystified
The .277 Fury is a 6.8mm cartridge based on .308 WIN. (Photo: Levi Sim)

NOTE: Our Editor, True Pearce, took the Cross rifle and the new Fury ammo on an elk hunt this Fall and we used some of his leftover ammo for these photos. Please note that these are pre-production cases and they don’t even bear a headstamp.

Is the .277 SIG Fury a Magnum?

The short answer is no. It fits into a short action rifle and has the same head diameter as a .308.

Why .277 or 6.8?

As many of you know, traditionally the best bullets are not found in .277 caliber. While a few good ones exist, most of the favorite bullets on the market are .260 caliber (6.5), .284 caliber (7mm) or .308 caliber. So why did SIG choose .277 (6.8mm)?

The answer is they didn’t. The U.S. military wants a new belt-fed machine gun and put out a contract for one. SIG entered a belt-fed machine gun hoping to win the contract. The military specified the caliber of 6.8 or .277. Of course, the military wants the cartridge lighter and more powerful so SIG began developing the .277 Fury for that contract. SIG has been selected as one of the three finalists for the contract and will be going into full production with the .277 SIG Fury for the military. The commercial market gets to reap the benefits of over two years of R&D with the cartridge for the military.

The other two finalists for the belt-fed contract are General Dynamics and Textron.

To summarize the .277 SIG Fury was designed for the military. Specifically for SIG’s belt-fed machine gun entry.

140 Grains, 3,000 FPS, 16″ Barrel

There have been all kinds of numbers circulating, but the facts are that a 140-grain bullet will attain a velocity of more than 3,000 FPS from a 16″ barrel. Exact chronographed velocity won’t be finalized until it’s checked in SIG Cross production rifles but at least 3,000 FPS is certain. Obviously, longer barrels are going to mean even faster speeds.

.277 SIG Fury Demystified

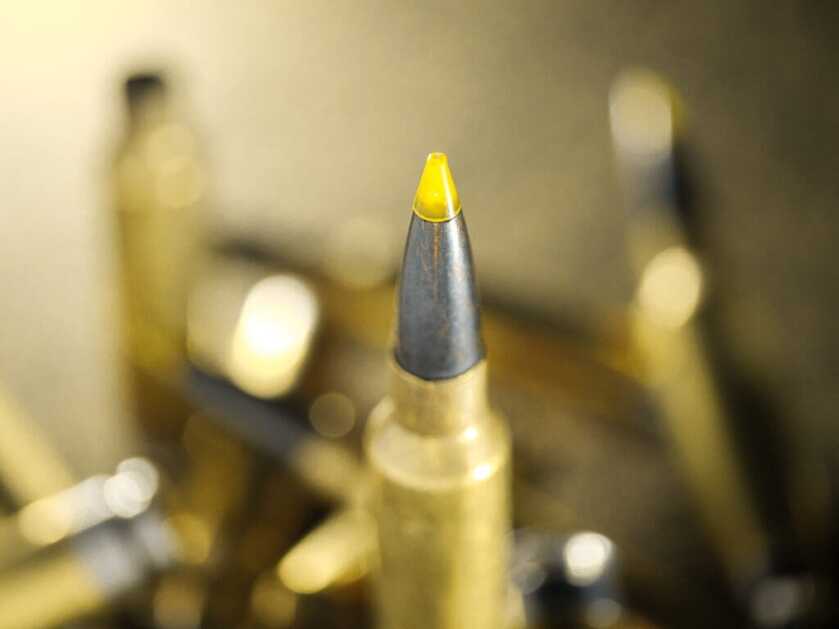

The Fury’s hunting projectile, a 140gr bullet, will fly at 3,000 FPS from a short 16″ barrel. (Photo: Levi Sim)

This is significant because this kind of speed is usually only possible from longer barrels and magnum rifles. While some claim handloaded speeds with 6.5 Creedmoors of over 2900 fps with 140 grain bullets, the truth is that they are shooting 28-30 inch barrels or are not following actual published load data and are far exceeding safe pressures (We might know some guys).

.277 SIG Fury Demystified

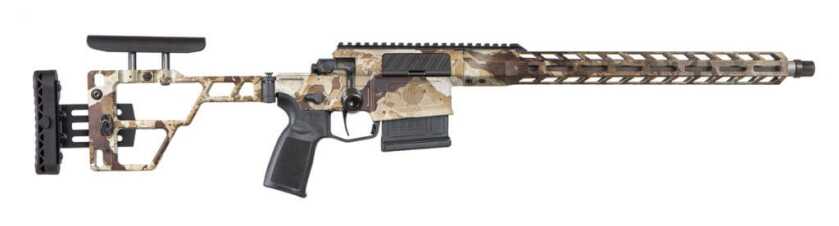

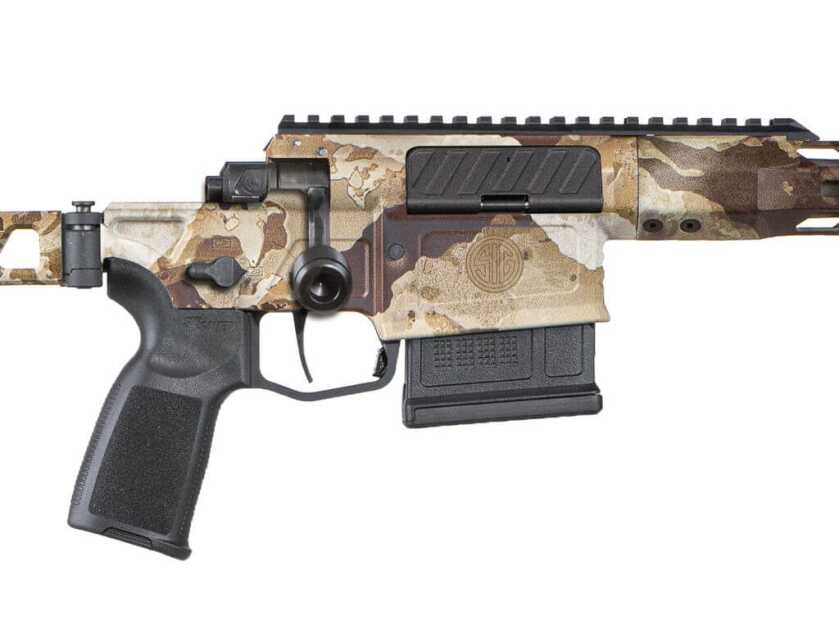

SIG’s new Cross rifle with a 16″ barrel.

SIG’s launch of the Cross rifle is targeted squarely at hunters and long-range shooters. They even offer it from the factory with FirstLite’s popular Cipher pattern. That gun with a 16″ barrel and chambered for .277 SIG Fury weighs just 6.2 lbs, and that’s very attractive when you consider that velocity.

What’s Different About This Case?

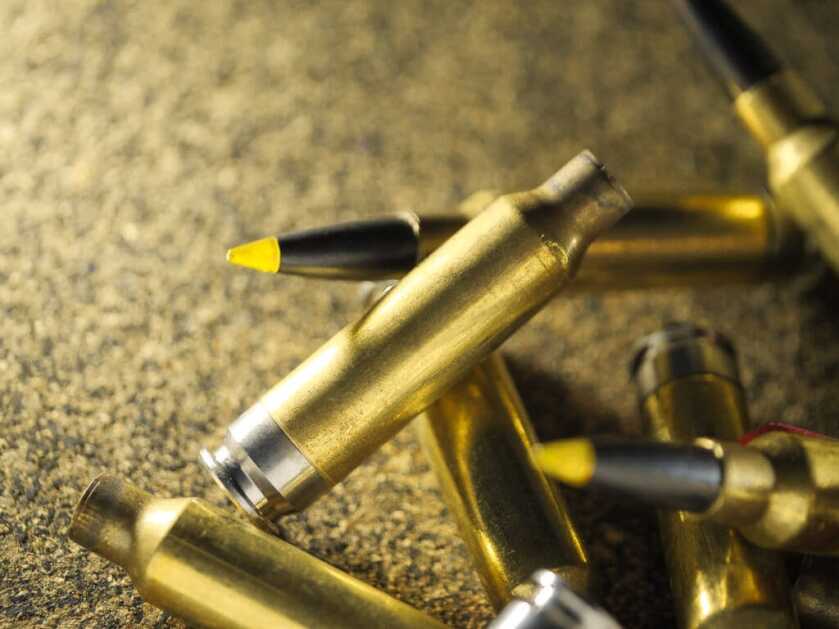

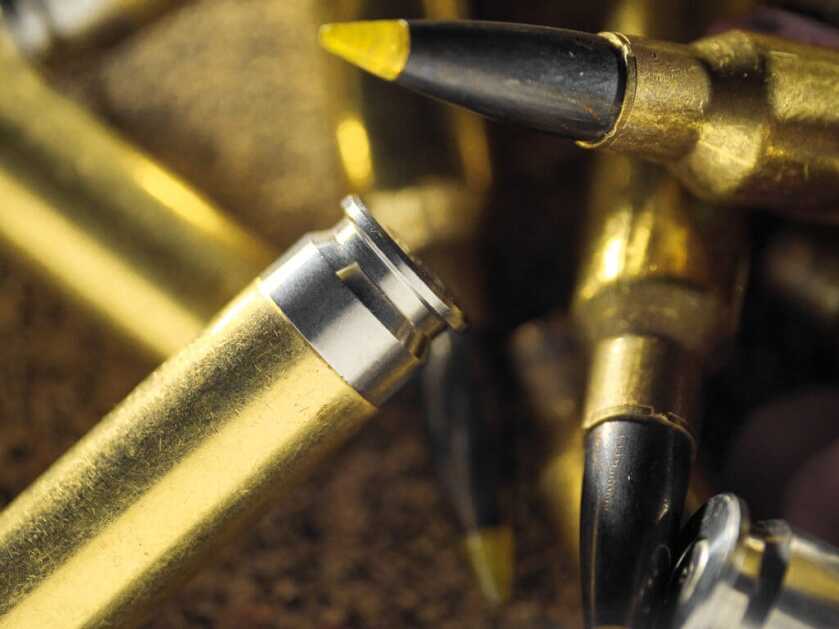

The .277 SIG Fury is a three-piece cartridge. The brass part of the case encompasses the body, shoulder, and neck. The base or head of the case is stainless steel and is where most of the pressure happens. The third piece mechanically bonds the stainless base and brass body together inside the case. SIG says, “We see this as the technology of the future.”

Putting a steel head on a brass case is not a new idea, but it has never been mass-produced. “We’ve been targeting a better way to manufacture it,” SIG’s representative says.

.277 SIG Fury Demystified
Fury cartridges are the first three-piece rifle cartridges produced in commercial quantities. Left to right: 6.5 CM, .277 SIG Fury, .308 Win. (Photo: Levi Sim)

Steel is much stronger than brass so this case can withstand higher pressures without being as thick as brass would require. It’s much lighter, making this case weigh significantly less than brass casings of similar loads. Soldiers who pack this stuff around by the ammo can-full will appreciate that.

.277 SIG Fury Demystified
A standard bolt for 6.5 CM or .308 will fit the .277 SIG Fury. The cartridge shoulder dimensions, however, won’t let the SIG Fury fit in the chambers of those rifles. (Photo: Levi Sim)

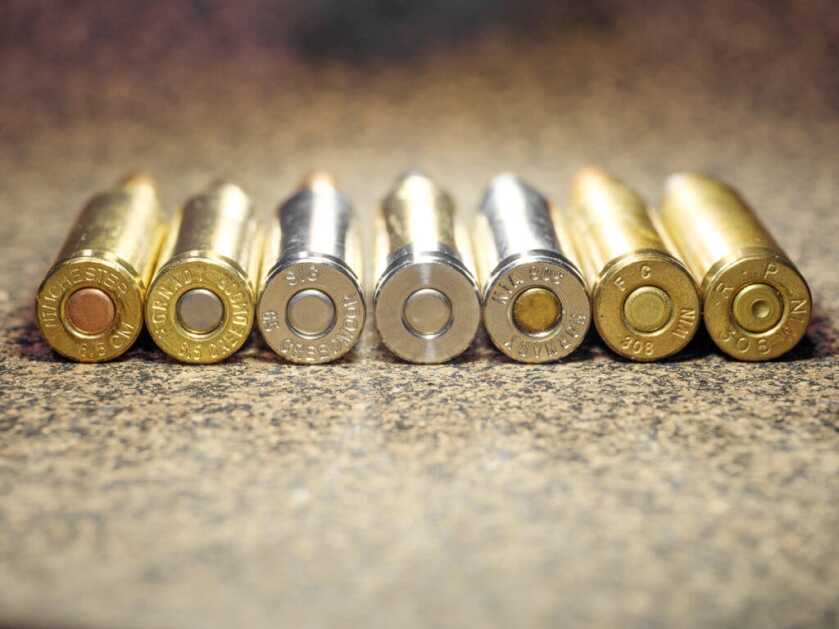

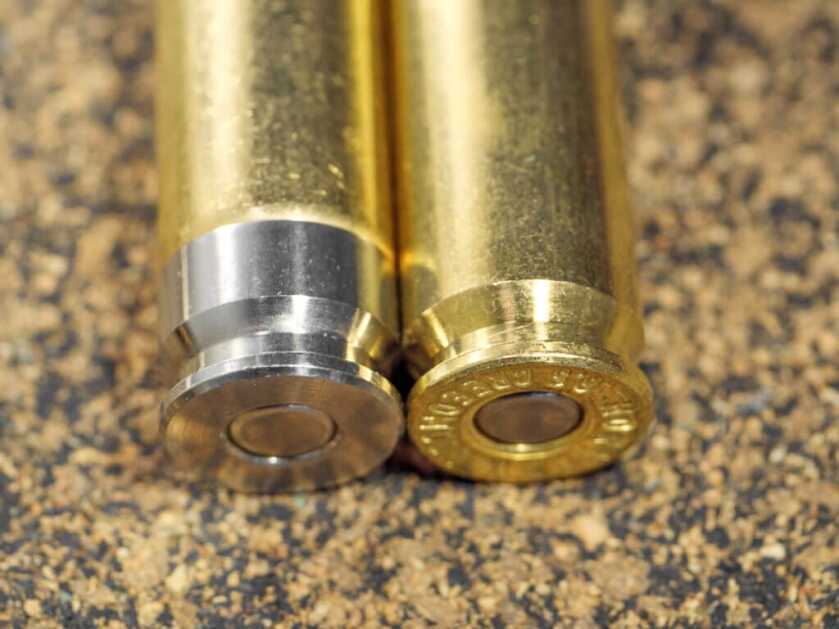

The case head is the same diameter as .308 and 6.5mm Creedmoor cases. The case has a similar OAL to a .308.

.277 SIG Fury Demystified

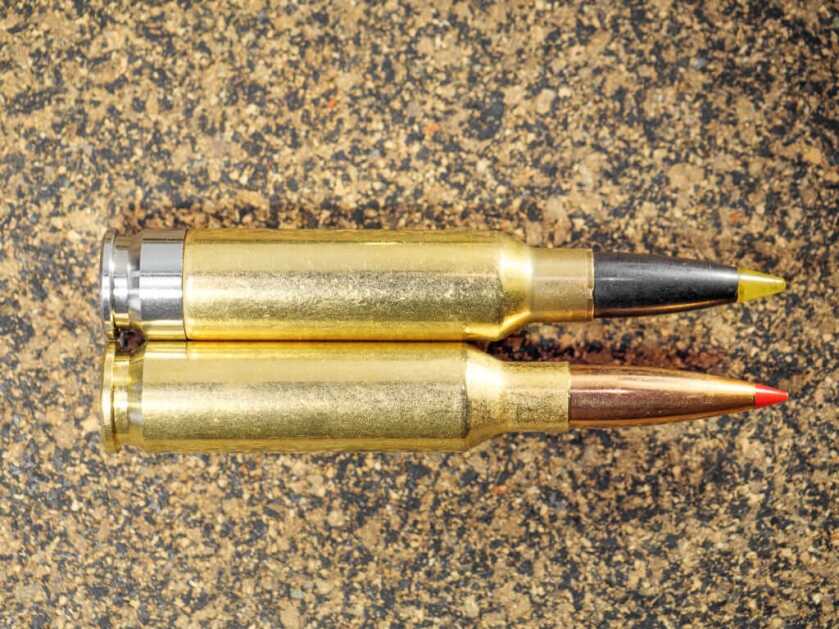

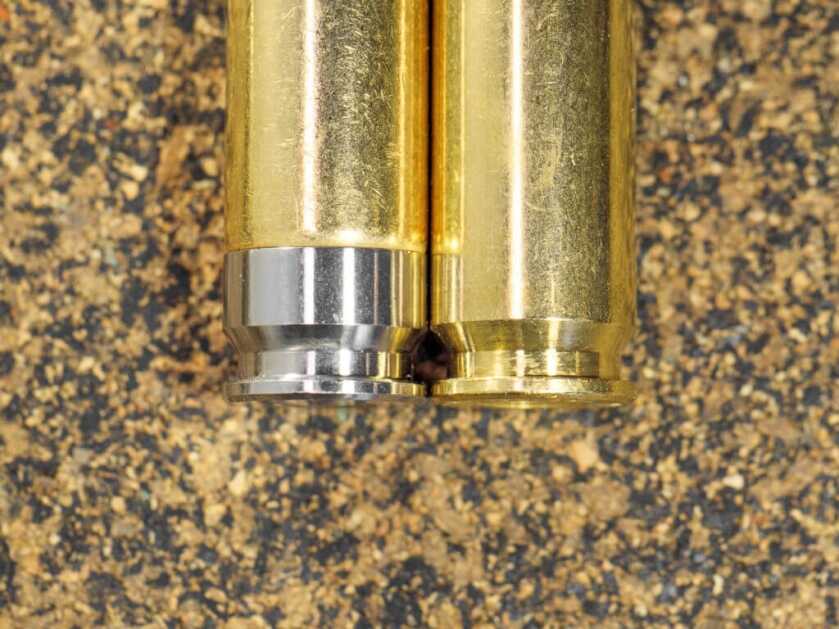

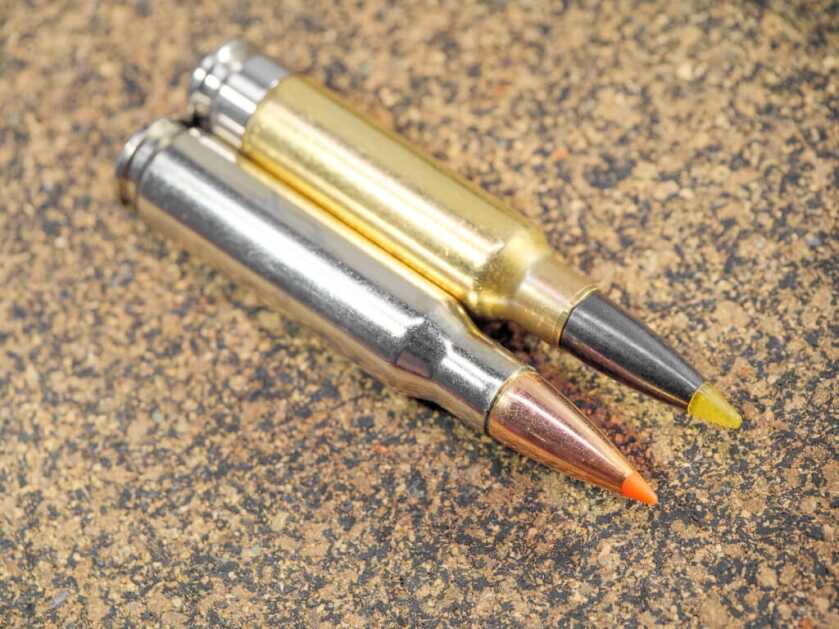

Top: .277 SIG Fury. Bottom: .308 WIN. (Photo: Levi Sim)
.277 SIG Fury Demystified

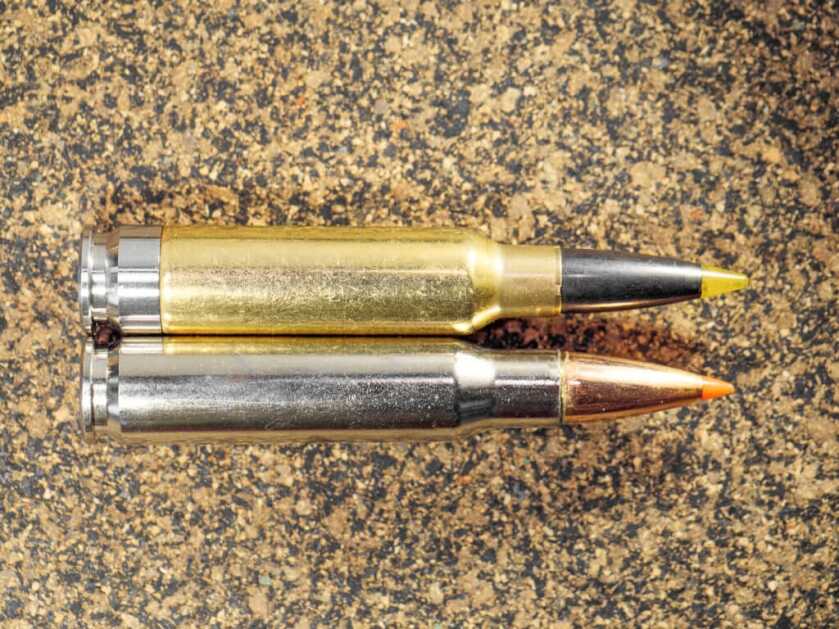

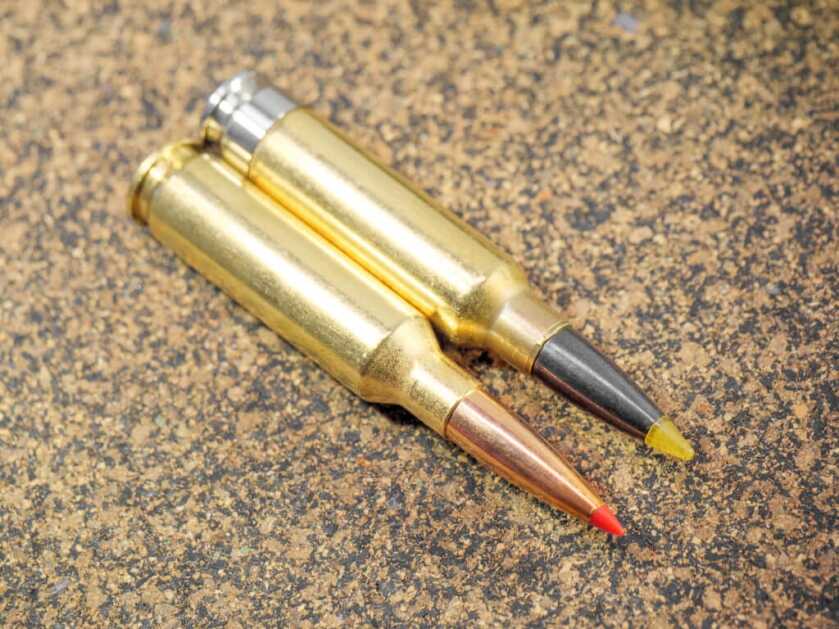

Top: .277 SIG Fury. Bottom: 6.5 CREED. (Photo: Levi Sim)

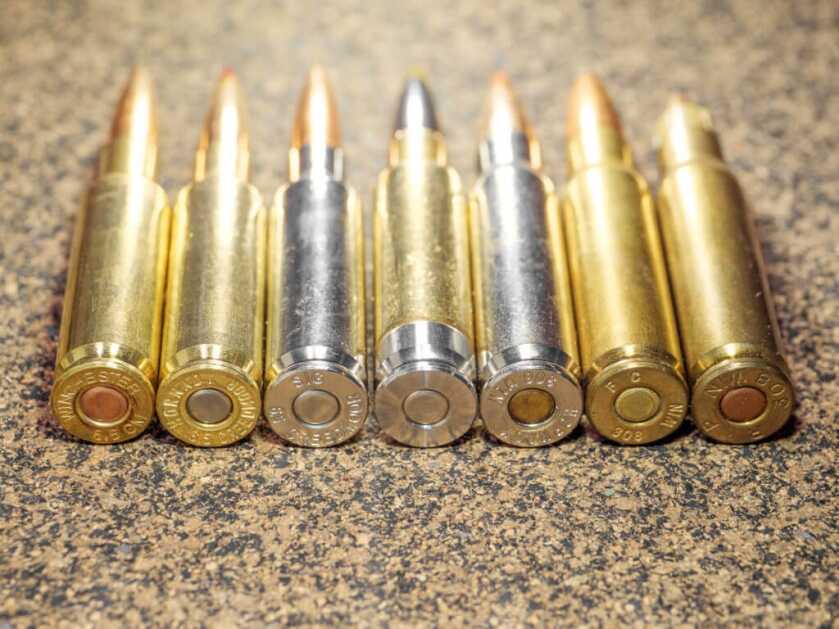

All these comparison photos should give you a good idea about the case. Once the SAAMI registration is published we’ll have exact dimensions.

80,000 PSI

A standard cartridge, like a .308, is producing (on the high side) around 60,000 PSI. A magnum cartridge, like .300 Remington Ultra Magnum, can produce as much as 66,000 PSI.

SIG’s Fury is working at more than 80,000 PSI. They have created and tested proprietary blends of faster burning powder that help safely push those pressures and velocities while maintaining good accuracy.

.277 SIG Fury Demystified

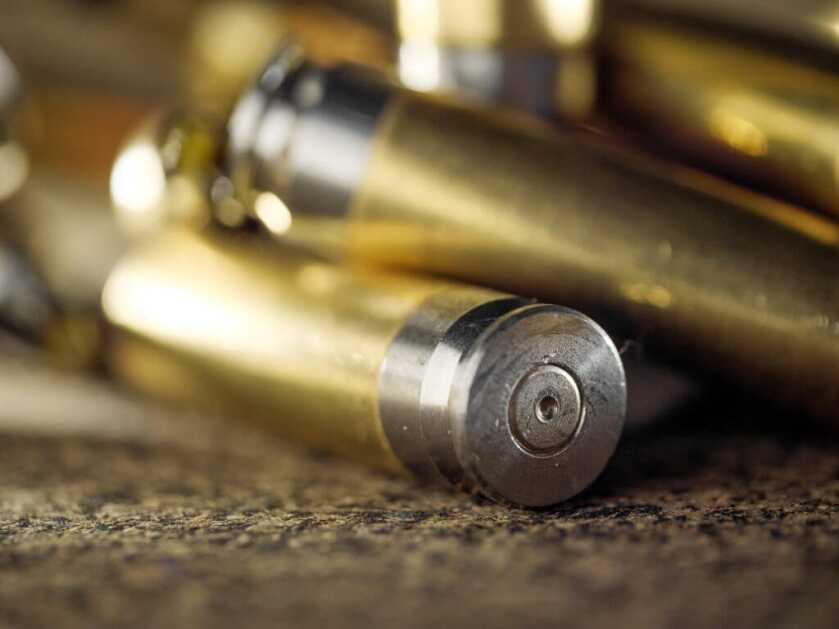

The stainless steel head on this cartridge makes it lighter and strong enough for 80,000 psi. (Photo: Levi Sim)

80,000 PSI is the key to getting high speeds from a short barrel. It’s not using standard powders, either. These are new proprietary powder blends SIG has developed while developing this ammo for the military.

Sweet, I’ll Have Ol’ Reliable Rechambered in .277 Fury…

Can you have your gunsmith rechamber your favorite rifle in SIG Fury? Technically, yes. SIG has even tested several actions from other manufacturers. A Remington 700 can certainly handle it, but SIG doesn’t recommend it, and for good reason.

That much pressure can be handled by existing actions, but they are not designed for it and it’s going to wear on them. “We Built the Cross rifle like a tank,” SIG says. Everything about this new action is engineered for longevity under the high pressure produced by this cartridge.

.277 SIG Fury Demystified
The heads are all the same size but don’t ask your gunsmith to rechamber your rifle. .277 SIG Fury in the middle, 6.5 CM on the left, .308 Win on the right. (Photo: Levi Sim)

.277 Only?

SIG will have the .277 ammo available commercially in 2020. This is SIG’s first proprietary rifle cartridge. But they already have other calibers in the works. They confirmed that a 6.5mm case is on the way and that we may see long action calibers follow.

.277 SIG Fury Demystified

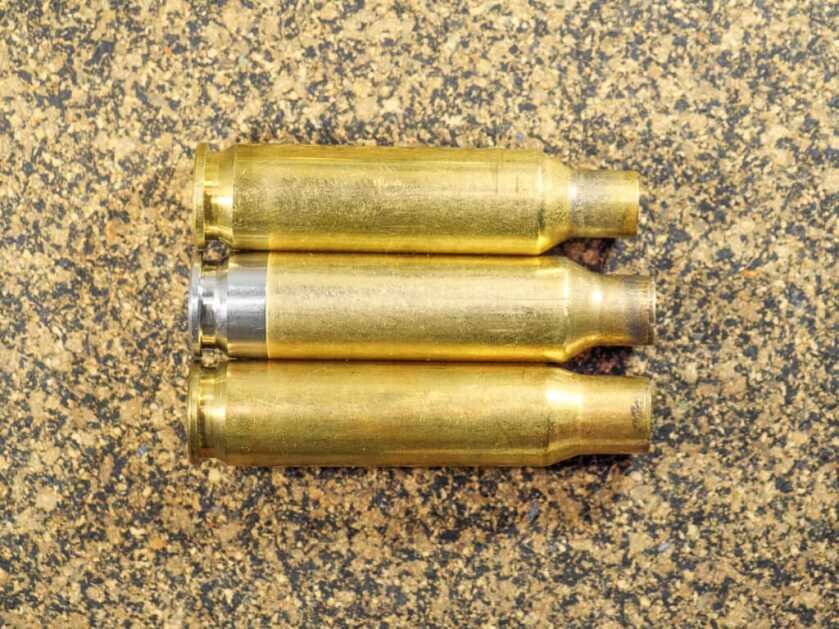

Top to bottom: 6.5 Creedmoor, .277 SIG Fury, .308 Winchester. (Photo: Levi Sim)

SIG emphasized that any forthcoming products won’t be existing chamberings. “Future cases using this technology will be a SIG Fury caliber. All of those cartridges will be proprietary SIG.” There won’t be a 6.5mm Creedmoor with this casing because they want to ensure that nobody loads this high-pressure ammo in actions that aren’t designed for it.

.277 SIG Fury Demystified

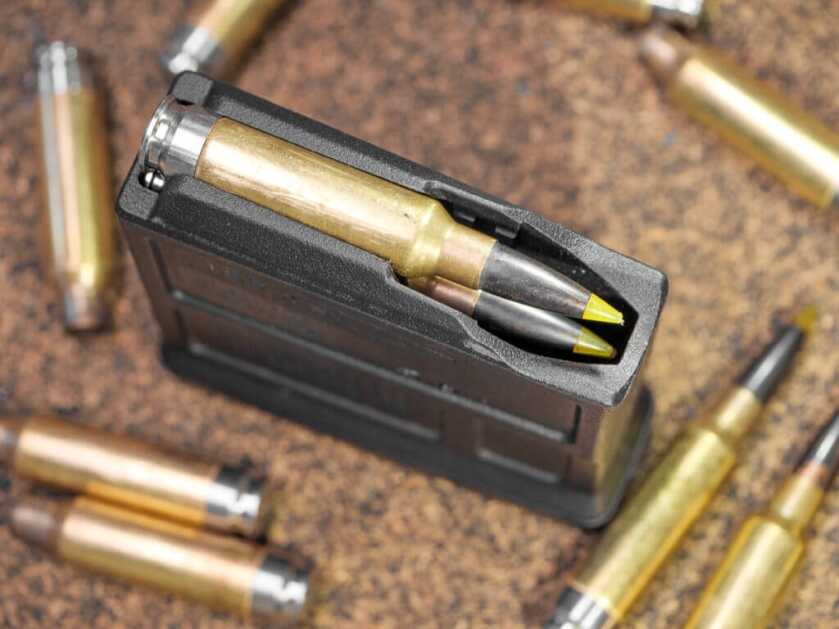

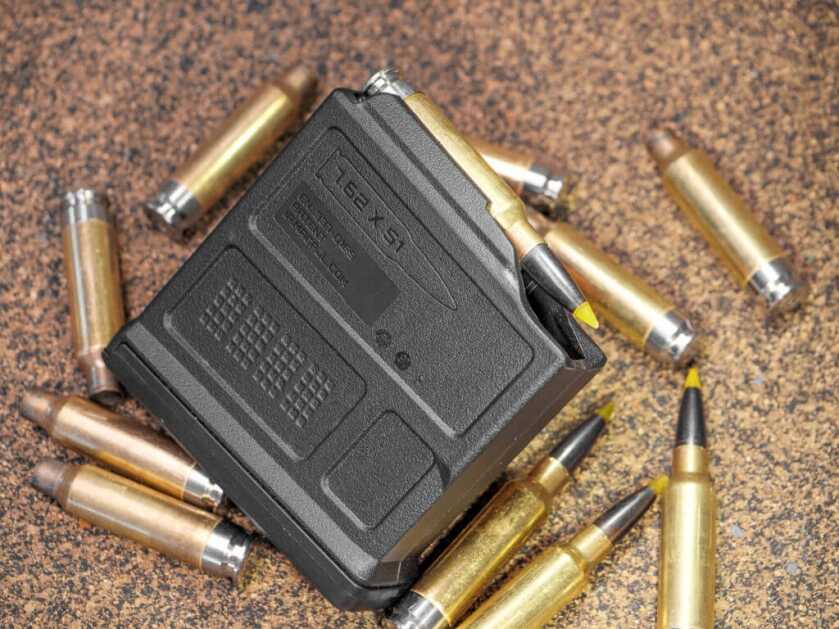

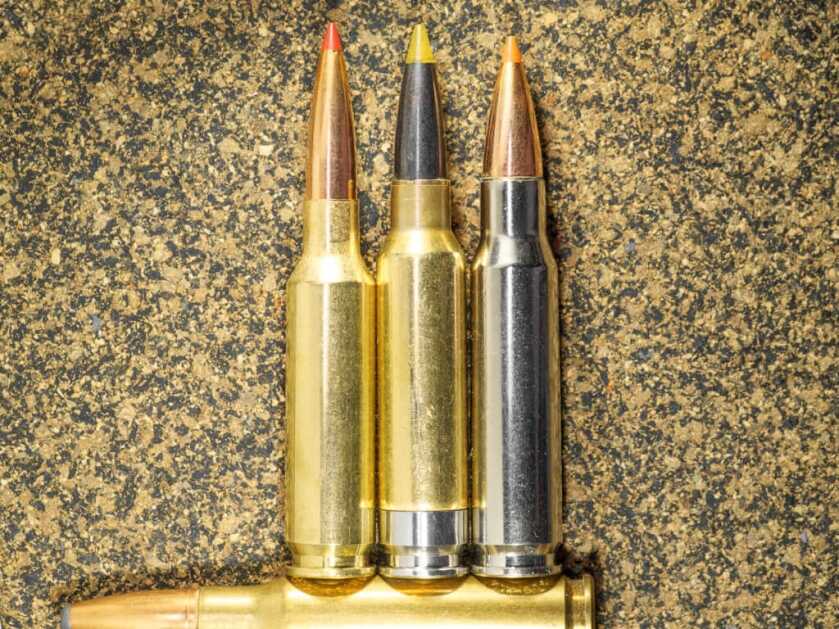

.277 Fury fits 7.62x51mm mags. (Photo: Levi Sim)

It does feed perfectly from existing AICS magazines.

SAAMI Registration

The .277 SIG Fury was filed with SAAMI in summer 2019 and the registration is expected to be completed early in the first quarter of 2020. Since it’s not finalized with SAAMI, we don’t have the exact specs and tolerances, yet.

.277 SIG Fury Demystified
Top: .277 SIG Fury. Bottom: 6.5 CREED. (Photo: Levi Sim)

SAAMI, the Sporting Arms and Ammunition Manufacturing Institute, is “tasked with creating and publishing industry standards for safety, interchangeability, reliability and quality, coordinating technical data and promoting safe and responsible firearms use.” All cartridges you buy commercially meet SAAMI specs and you can reference their specs for your own reloading.

What Does SIG Proprietary Mean?

This is a SIG designed cartridge that doesn’t fit any other chambering. Some speculation was that this would fit in a regular 6.8. It won’t. Sig has registered this cartridge with SAAMI and fully expects other manufacturers to produce ammunition and rifles chambered in their proprietary chambering. No royalties will be required. Everyone will benefit from the commercialization of this cartridge.

Barrel Life

With high pressures and special powders, the barrels have got to be wearing out like crazy, right?

Testing is still being conducted on barrel life, and most of the focus has been on the full-auto belt-fed machine gun barrels SIG is pitching to the military. They have done lots of testing on the bolt guns, too, but SIG isn’t ready to release numbers quite yet.

.277 SIG Fury Demystified
With new powder blends, 3,000 fps doesn’t mean it’s burning up barrels. .277 Fury side-by-side with 6.5 Creedmoor. (Photo: Levi Sim)

They told us the preliminary numbers, though, and we had to ask again to clarify because it didn’t sound possible. We can say that with specific barrel coatings the barrel life with the .277 SIG Fury is better than the speculation in the forums and better than you’re imagining.

Way better than you’re imagining. Can’t wait for SIG to finish testing and release the final numbers.

Reloading

SIG will have reloading supplies for Fury ammo in the future. Their priority right now is in winning the government contract and launching the ammo commercially.

.277 SIG Fury Demystified
Top: .277 SIG Fury. Bottom: .308 Win. (Photo: Levi Sim)
.277 SIG Fury Demystified
6.5 CM on the left, .277 SIG Fury in the middle, .308 Win on the right. (Photo: Levi Sim)

What Happens to the SIG Fury if SIG Doesn’t Win the Military Contract?

SIG assured us that they are “all in” on this cartridge and concept and that regardless of what the military does that they will be producing and creating other calibers.

Their first goal is to finalize a manufacturing process that allows them to build cases in huge quantities and for as low of a price as possible.

.277 SIG Fury Demystified

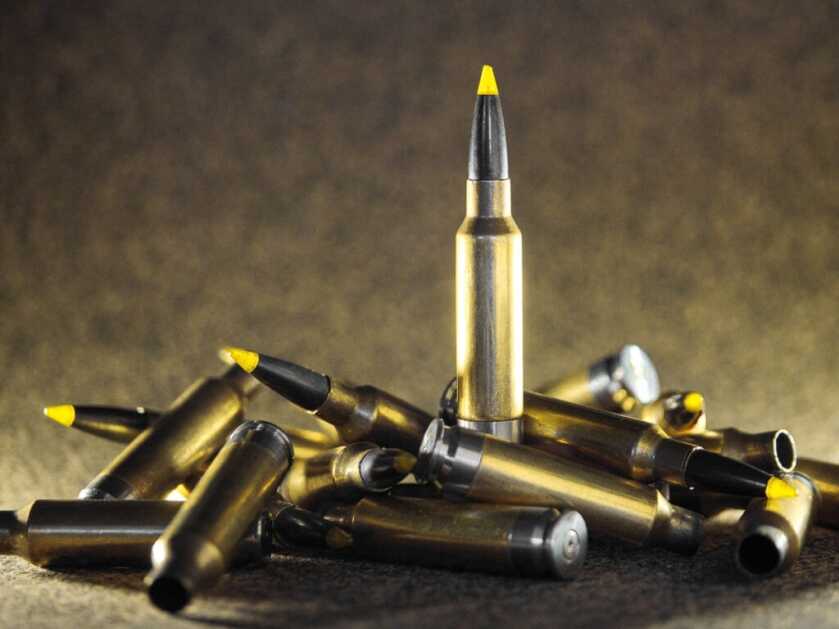

(Photo: Levi Sim)

As part of their audition with the military, SIG has to produce millions of rounds of ammunition this year for testing. Their priority is supplying the military, of course, but they are making it available commercially no matter the military’s choice.

“We’ve already invested in this, in the machinery,” SIG told GunsAmerica. “We are going forward with this no matter what happens with the military.”

.277 SIG Fury Demystified
(Photo: Levi Sim)

What’s It Going to Cost?

SIG doesn’t know yet but they know that to succeed commercially that it can’t be way more expensive than other hunting ammunition on the market. Currently, they’re machining the case heads but have several other technologies that they’re investing in that could make the cases much less expensive.

And if the military adopts it, then it should become relatively inexpensive due to the quantities that will be manufactured.

.277 SIG Fury Demystified
(Photo: Levi Sim)

What Ammo Will Be Available?

We do know that there is going to be 135-grain match ammo and 140-grain ammo right off the bat. These photos are all the 140-grain hunting round. SIG expects a plethora of bullet options to follow as well as other ammo manufacture’s to load for the round.

How Does It Shoot?

Preliminary tests are excellent. Our Editor, True Pearce who has hunted with and shot the rifle and ammo says that “it exceeded his expectations in a hunting rifle.” Currently all of the Cross rifles chambered in .277 SIG Fury are prototypes but you can expect GunsAmerica to do some accuracy testing and report on it as soon as production guns are available. It doesn’t do anyone any good to report on a non-production prototype rifle’s accuracy that will be different than the finished product.

The Cross Rifle

The Cross rifle — which is a crossover between tactical and hunting — is currently the only rifle available for the .277 SIG Fury ammo. It is the only rifle that can shoot it, and SIG developed the rifle from the ground up for this revolutionary cartridge.

.277 SIG Fury Demystified

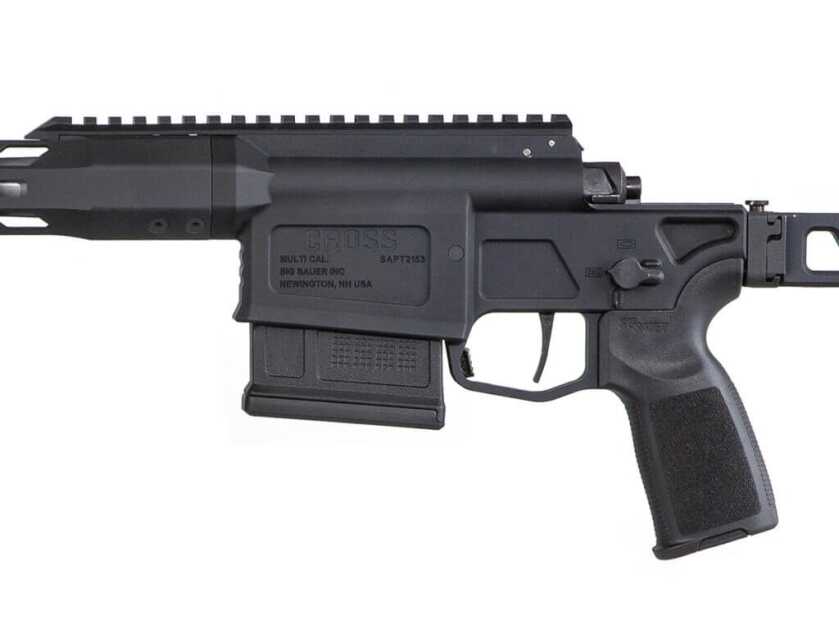

The Cross rifle has a monolithic receiver engineered to handle high pressures like a boss.

Development started four or five years ago on the rifle and it has been extensive. Everything in the rifle was designed and manufactured by SIG. The action and trigger (parts you can’t see from the pictures) are different from a design perspective than anything else available on the market. Obviously there are similarities between any rifle. They all have a stock, a bolt and a barrel but the way it works is unlike anything else out there.

Unfortunately, rumor has it that the production version won’t have the dust cover.

.277 SIG Fury Demystified
Although many controls are familiar to AR owners, this gun is aimed at hunters in a big way.

MSRP for the Cross rifle is $1,779, but you’ll find it at stores for the minimum advertised price of $1,599.

.277 SIG Fury Demystified
