Getting Small with FoldAR’s Double-Fold AR15 — SHOT Show 2022

Compact AR takes on a whole new meaning with the FoldAR.

To improve portability and storage, folding buttstocks on AR-15 rifles and pistols have been all the rage for several years. FoldAR takes that compact storage level to a much higher plane.

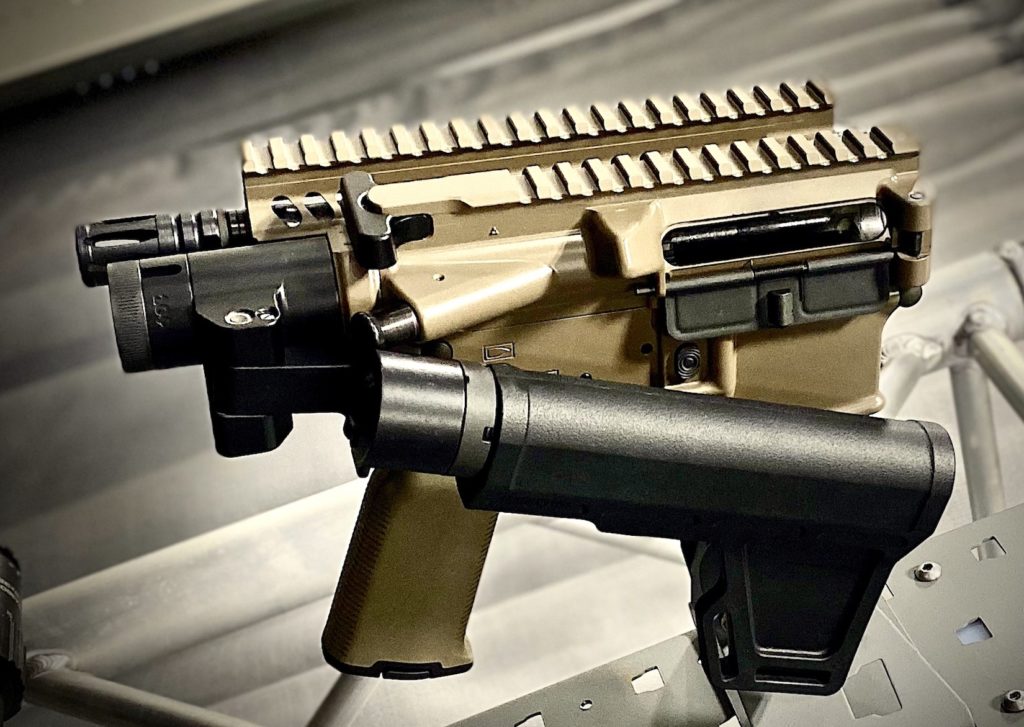

The Double FoldAR folds not only at the stock but also where the upper receiver meets the handguard. This makes the overall length with the 9-inch barrel a mere 10 ¾ inches, and only 5 ¾ inches wide. FoldAR sells both single-fold and double-fold AR pistols and rifles.

A Dead Foot Arms Modified Cycle System (MCS) is used on the brace end of the FoldAR to accomplish that fold. The MCS uses a modified bolt carrier, plunger and spring system to allow folding and still allows the FoldAR to be fired while the brace or stock is folded.

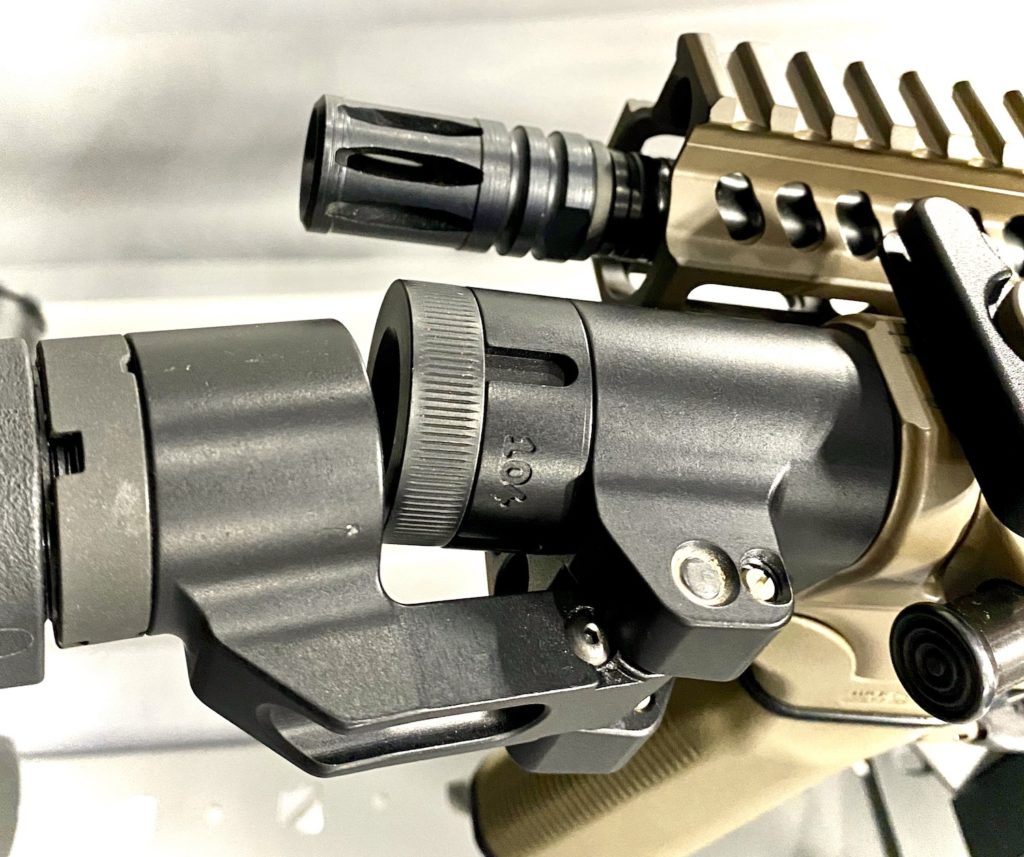

MCS right-side folding adapter on the FoldAR pistol.

The magic of the Double FoldAR is the mating of the proprietary upper receiver and forearm assembly. The folding hinge is reinforced on both parts to provide a rock-solid foundation for the mating of the barrel and receiver. When folded, the handguard is secured in place by a detent to the upper receiver.

FoldAR testing has found that return to zero is typically less than 0.05” at 50 yards, so that equates to maybe a 1/10 of an inch at 100 yards, that’s pretty awesome. A steel hook and lever provide locking of the barrel to receiver.

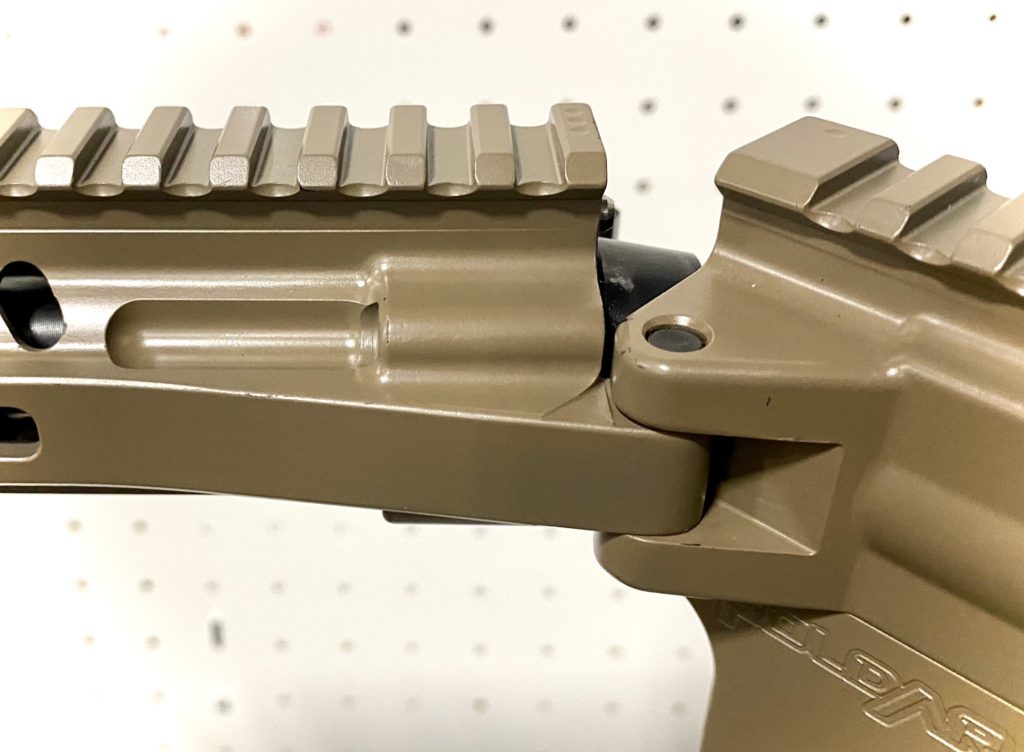

Large diameter pin and heavy reinforcement on both sides of the joint.

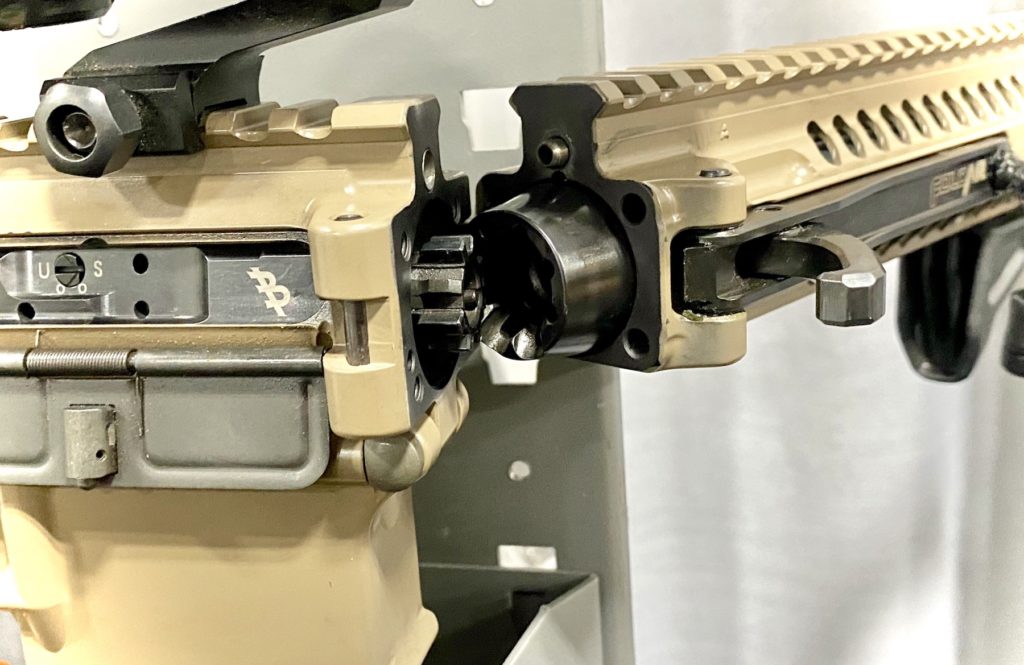

Alignment of the barrel to the receiver is accomplished through the use of mating cones. This provides for precise horizontal and vertical positioning in the receiver.

The gas tube is connected with mating cones as well. The gas flow is controlled by a FoldAR adjustable gas block to allow shooter adjustment to match load.

Both of the folding joints of the Double FoldAR pistol add weight, but even then with a 9-inch barrel it is very compact when folded and tips the scales at only 6.2 pounds.

It doesn’t take long when handling the FoldAR to get the hang of unfolding and locking everything in place, but the guys working the booth at SHOT were doing this in about 5 seconds from the included nylon carry bag. The FoldAR also comes with three 20-round magazines which keep the size of the stowed weapon small.

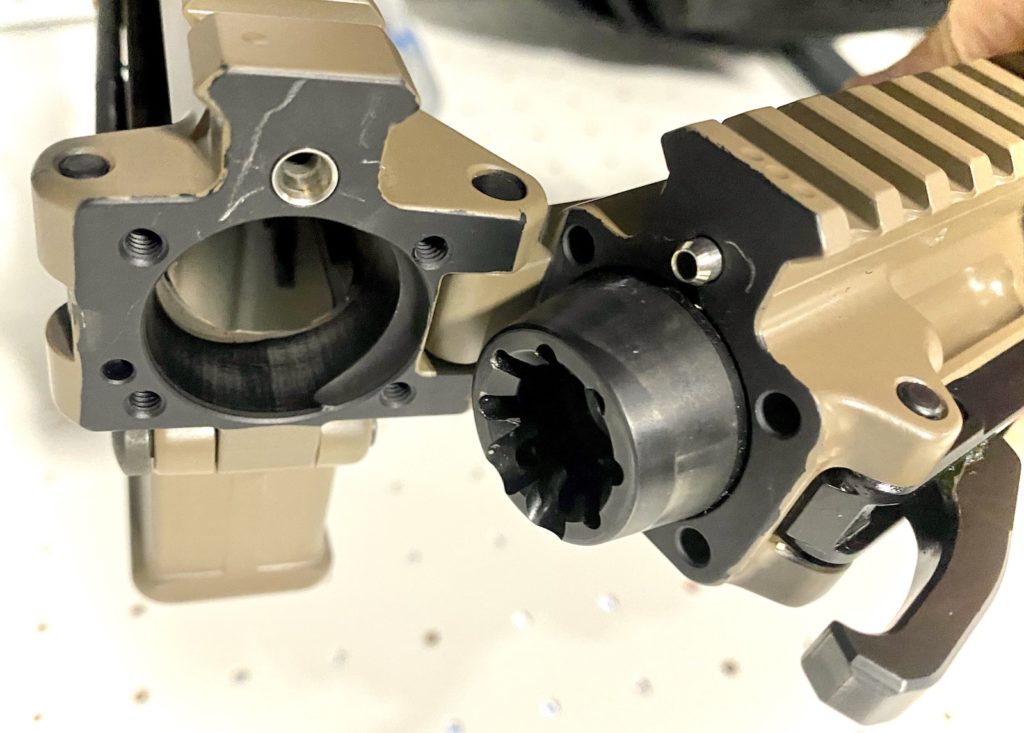

Mating surfaces of the FoldAR receiver and barrel/ handguard.

The handguard can also be bolted in place to the receiver by using the threaded holes in the mating surface. I can’t think why I would want to do that but obviously someone needed it.

Specifications

  • Caliber            5.56 (223 Wylde) or 300 Blackout
  • Barrel             9”
  • OAL                 25 ¾ “unfolded
  • Folded            10 ¾”
  • Weight            6.2 lbs
  • Barrel twist     1-7
  • Barrel             4150 Melonited steel
  • BCG                MCS modified
  • MSRP             $2399

The FoldAR upper is available as a unit if you want to build your own lower. The 9-inch FoldAR upper is $1,599. Folding rifles are also available.

The locking is accomplished with a high tensile steel alloy hook and lever.

For more information on this and other FoldAR products visit them Here

***Buy and Sell on GunsAmerica! All Local Sales are FREE!***

About the author: Jeff Cramblit is a world-class competitive shooter having won medals at both the 2012 IPSC World Shotgun Championship in Hungary and more recently the 2017 IPSC World Rifle Championship in Russia. He is passionate about shooting sports and the outdoors. He has followed that passion for over 30 years, hunting and competing in practical pistol, 3gun, precision rifle and sporting clays matches. Jeff is intimately familiar with the shooting industry – competitor, instructor, RO, range master, match director. Among his training credits include NRA Instructor, AR-15 armorer, FBI Rifle Instructor, and Officer Low Light Survival Instructor. As a sponsored shooter, Jeff has represented notable industry names such as: Benelli, 5.11 Tactical, Bushnell, Blackhawk, DoubleStar, and Hornady. He has been featured on several of Outdoor Channel’s Shooting Gallery episodes and on a Downrange TV series. Jeff’s current endeavors cover a broad spectrum and he can be found anywhere from local matches helping and encouraging new shooters as they develop their own love of the sport, to the dove field with his friends, a charity sporting clays shoot, backpack hunting public land in Montana, or the winners podium of a major championship.
